Large-Diameter Seamless Rolled Rings for Heavy-Duty Applications
At Liaoyuan, our ring rolling capability focuses on the production of large-diameter, seamless forged rings for bearings, gear systems, and critical transmission components. By combining controlled ring rolling processes with integrated heat treatment and machining, we deliver rolled rings with uniform grain flow, stable dimensional accuracy, and reliable mechanical performance for demanding industrial applications.

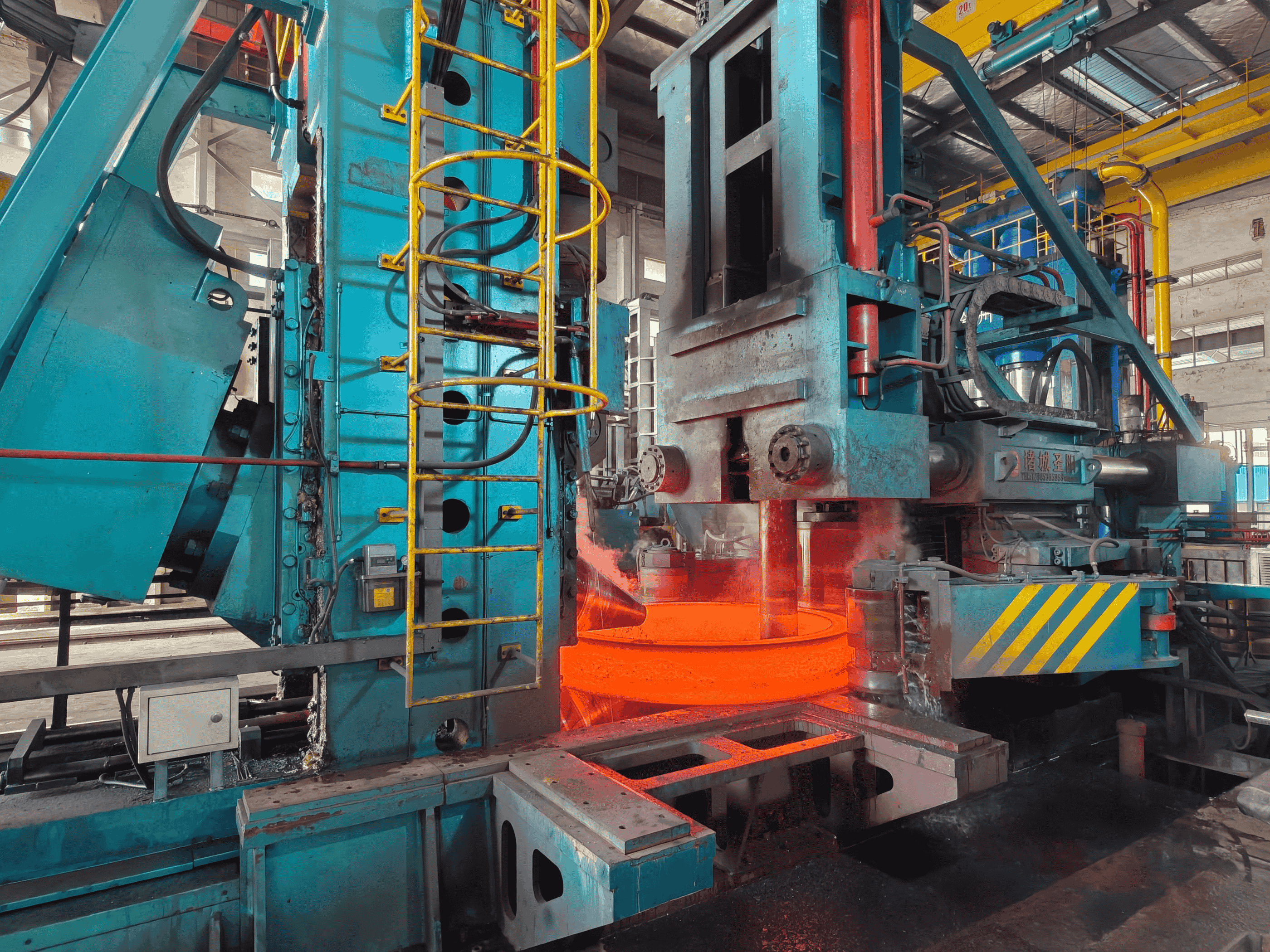

Our ring rolling workshop is designed for medium to large-size rings, where structural integrity, fatigue resistance, and consistency are critical.
Seamless Ring Rolling Capabilities
We specialize in custom seamless ring rolling with the following typical capability range:
-
Outer diameter: Ø400 mm – Ø5,000 mm
-
Maximum ring height: up to 800 mm
-
Wall thickness: customized according to load and application requirements
-
Typical ring weight: from several hundred kilograms up to multi-ton class
Materials:
-
Alloy steels
-
Medium- and high-carbon steels
(Material selection aligned with bearing, gear, and heavy-duty transmission requirements)
Our ring rolling process is optimized to produce rings with continuous grain flow along the circumferential direction, improving load distribution and fatigue performance compared to cut or welded rings.
Process Control & Quality Assurance
Dimensional stability and internal soundness are critical for large rolled rings. Our ring rolling production is supported by strict in-process control and downstream quality verification, including:
-
Controlled deformation and expansion to minimize ovality and eccentricity
-
Process monitoring to prevent surface laps, folds, and internal defects
-
Integrated heat treatment (normalizing, quenching & tempering, annealing, solution treatment as required) to achieve target mechanical properties
-
Ultrasonic testing (UT / PAUT) for internal integrity
-
Dimensional inspection using CMM and conventional gauges
All rolled rings are manufactured under a heat number–based full traceability system, ensuring complete tracking from raw material through forging, heat treatment, machining, inspection, and final delivery.
Typical Products
Our seamless ring rolling capability is widely applied in the following components:
Bearing Rings
-
Tapered roller bearing (TRB) rings
-
Spherical roller bearing (SRB) rings
-
Thrust bearing rings
Rolled bearing rings benefit from circumferential grain flow, enhancing fatigue life under continuous and cyclic loads.
Gear & Transmission Rings
-
Planetary gear rings
-
Sun gear rings
-
Large-diameter transmission rings
Custom ring profiles can be produced to match gear cutting and subsequent machining requirements.
Heavy-Duty Industrial Rings
-
Transmission components for heavy machinery
-
Industrial equipment and construction machinery
-
Energy and power-related applications requiring high structural reliability
Why Liaoyuan for Ring Rolling
Choosing Liaoyuan means working with a supplier that understands ring rolling as part of an integrated manufacturing system, not an isolated process.
-
Integrated production: forged blanks, ring rolling, heat treatment, and machining under one quality system
-
Dimensional and metallurgical consistency: reduced risk from multiple suppliers and secondary reheating
-
Full traceability: heat number control throughout the entire manufacturing chain
-
Experience with large and heavy rings: proven capability for demanding bearing and transmission applications
Our focus is not high-volume commodity rings, but engineered rolled rings for critical service conditions, where reliability and consistency matter.
For ring rolling projects involving large diameters, high loads, or strict quality requirements, Liaoyuan provides a stable and technically reliable manufacturing solution.
