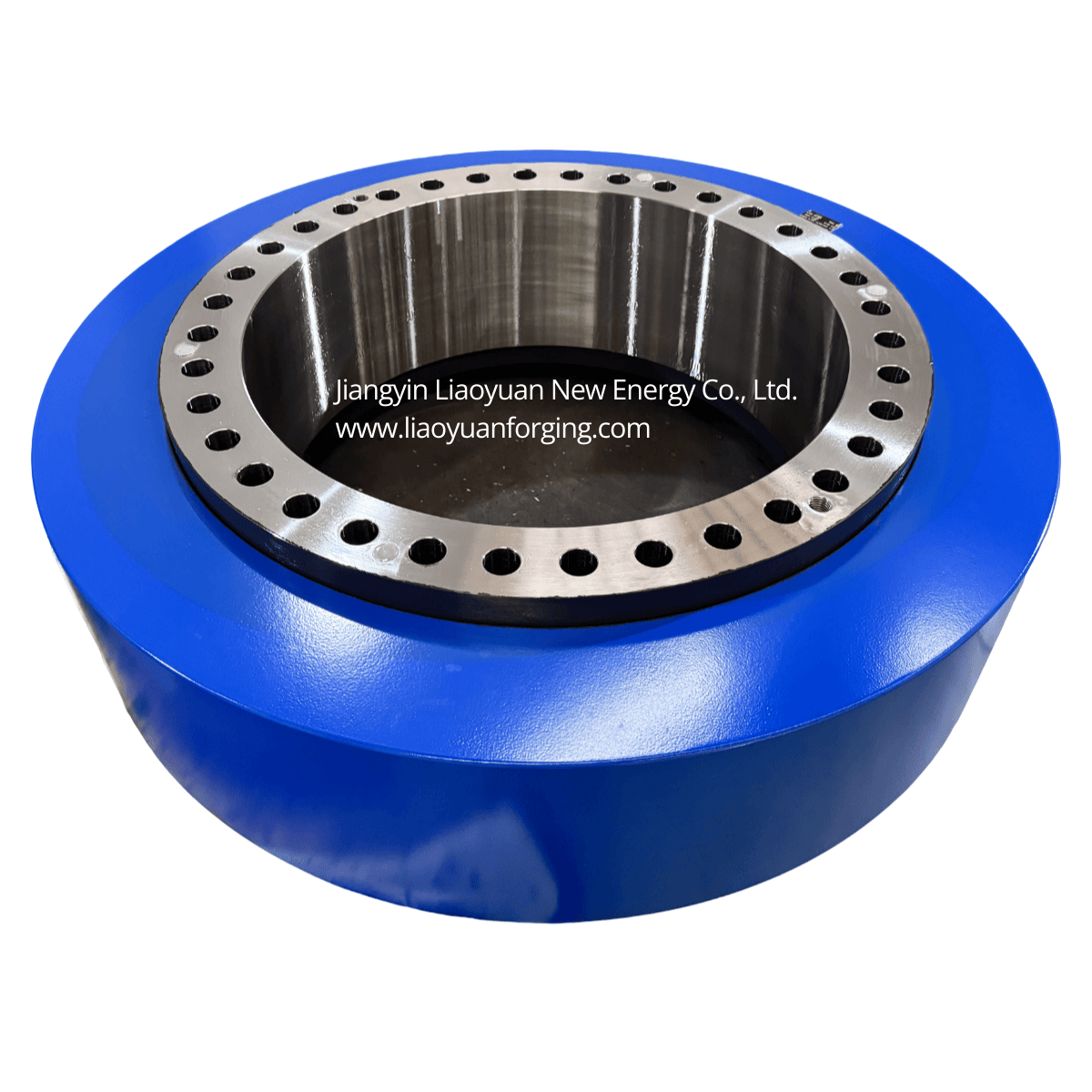

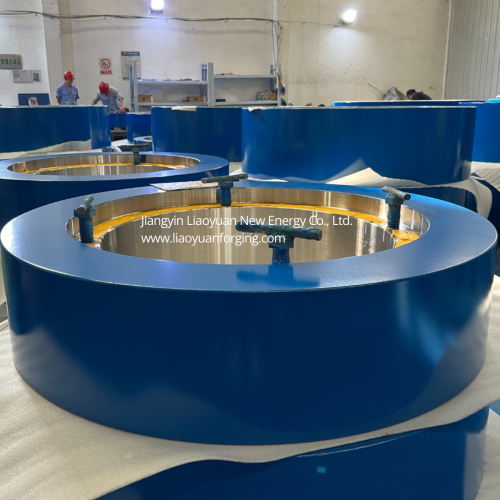

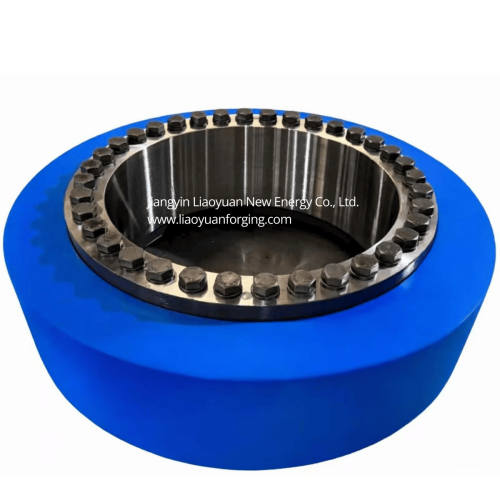

The Ready-to-Mount Shrink Disc is a high-precision torque-transmitting component designed for integration into planetary gearbox systems and other heavy-duty industrial drive parts.
Its robust design ensures reliable torque transfer under continuous high load and cyclic operation, while maintaining concentricity and structural integrity.
| Feature | Specification / Note |
|---|---|
| Material | Alloy Steel, high-strength carbon steel |
| Diameter | Ø200–800 mm |
| Manufacturing | Ring Rolling, Heat Treatment in-house |
| Mounting | Ready-to-mount configuration, finished or fully machined bore |
| Inspection | Full in-house testing: mechanical, UT/PAUT, MT, dimensional control |
| Application | Planetary shafts, ring gears, wind turbine gearboxes, industrial heavy drives |
| Traceability | Heat-to-delivery full traceability, compliant with European industrial standards |
We currently support several global gearbox and drivetrain OEMs with non-standard forged components used in planetary systems and heavy rotating assemblies. Our typical supply scope includes planetary shafts, planetary gears, large ring gears and shrink disc components, manufactured with full in-house heat treatment and inspection.
In some projects, such components are applied in European gearbox platforms, where manufacturing stability and quality traceability are critical.
Beyond standard forged components, we provide engineering support for fully customized shrink disc configurations tailored to specific drivetrain platforms.
Our technical team can develop shrink disc solutions based on:
Required torque transmission capacity and load spectrum
Operating conditions (speed, temperature, cyclic loading)
Interface geometry and shaft/hub assembly constraints
Material selection and heat treatment strategy
This capability allows us to support OEMs and Tier-1 gearbox manufacturers during early-stage project evaluation, redesign initiatives, or alternative supplier qualification processes.
Rather than supplying only a forging, we participate in the engineering alignment process to ensure manufacturability, structural integrity, and production repeatability.
For technical references or to discuss potential project applications, please contact us directly or schedule a short introductory call.
