Custom Forged Industrial Pump Shafts
Engineered within Liaoyuan’s proven Forging and precision machining capabilities for industrial pumps
Product Overview
Liaoyuan’s custom forged industrial pump shafts are designed for applications requiring high reliability, precision, and strength. Leveraging our extensive experience in forging and precision machining, we deliver shafts that are fully customizable within proven ranges, ensuring your pumps operate optimally under demanding conditions.
Whether for medium-duty process pumps or large industrial fluid systems, our pump shafts are engineered to meet your unique requirements without compromising quality or manufacturability.

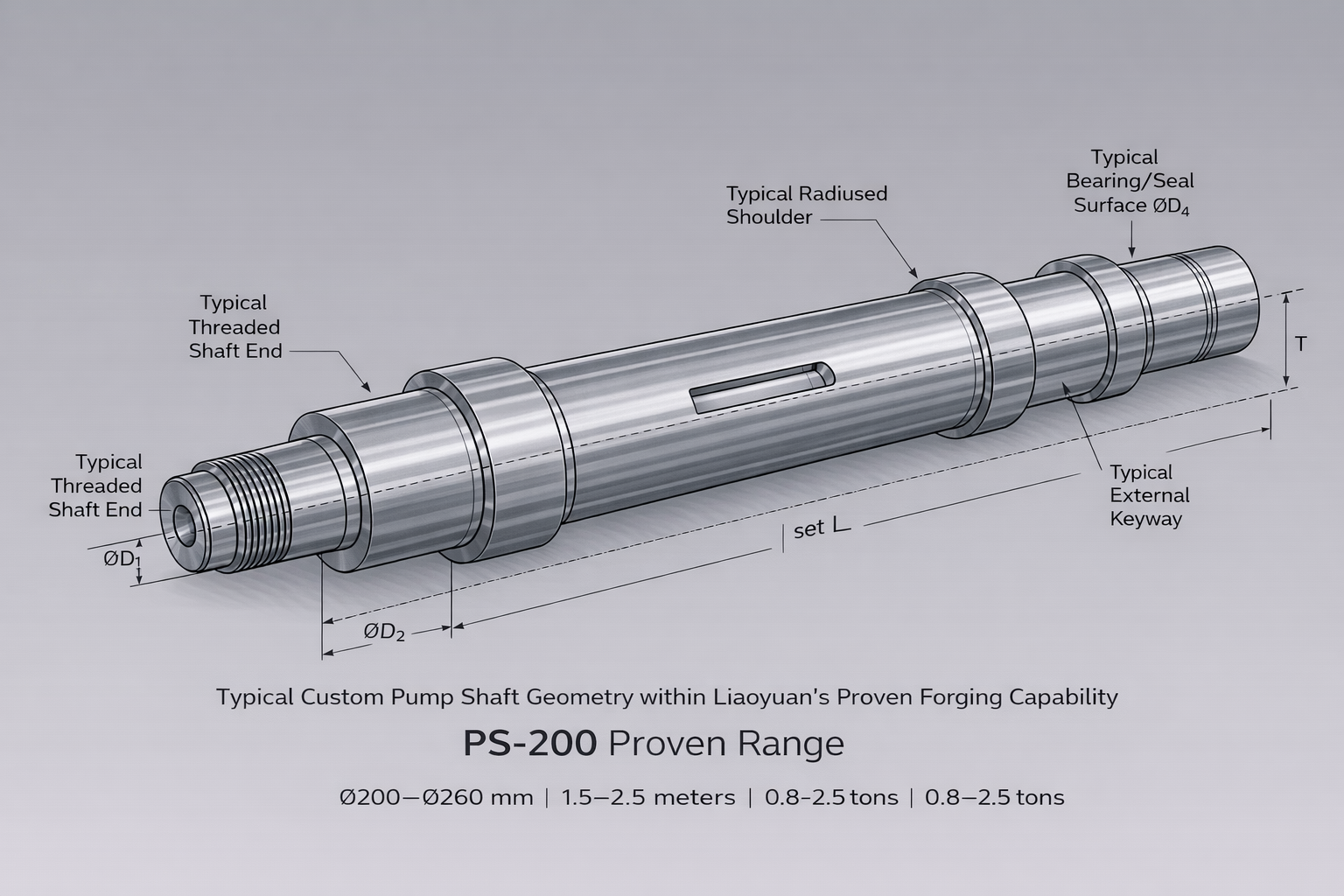

Engineering reference image for customized pump shafts within proven manufacturing ranges.
Industry Applications
Liaoyuan's custom forged industrial pump shafts are engineered for a wide range of heavy-duty and process pump applications, ensuring high reliability, strength, and precision in demanding environments.
- Water Treatment & Pump Systems: Medium and large industrial pumps, circulation pumps, and water supply/drainage pumps
- Thermal Power Plants: Circulating water pumps, cooling water pumps, chemical feed pumps
- Chemical & Petrochemical Industry: Process pumps for transporting liquids or chemical media
- Pulp & Paper and Textile Equipment: Industrial fluid transfer systems
- Other General Industrial Machinery: Pump shafts requiring high reliability, strength, and precision machining
Each pump shaft can be fully customized to meet specific industry requirements and operating conditions, providing optimal load-bearing, wear resistance, and dimensional accuracy.
Product Specifications
While every shaft is customized to your specifications, the following capability ranges represent our most commonly delivered solutions:
| Capability Range | Typical Application | Shaft Diameter | Length | Weight |
| PS-100 | Medium-duty industrial pumps | Ø100–160 mm | 800–1,500 mm | 200–800 kg |
| PS-200 | Heavy-duty process pumps | Ø180–260 mm | 1,500–2,500 mm | 0.8–2.5 t |
| PS-350 | Large industrial pumps | Ø280–380 mm | 2,500–4,000 mm | 2.5–5 t |
These ranges serve as guidance. Every shaft can be engineered to meet your functional requirements within our proven manufacturing limits.
- Materials: 42CrMo4, 34CrNiMo6, AISI 4140/4145
- Heat Treatment: Quenching & Tempering (Q&T)
- Mechanical Properties: High strength, toughness, and wear resistance suitable for continuous industrial operation
- Forging: High-quality free forging ensures optimal grain structure and strength.
- Rough Machining: Reduces material stress and prepares for precision finishing.
- Precision Machining: Step diameters, bearing seats, external keyways, and shaft ends machined to tight tolerances.
- Surface Finishing: Functional surface zones achieve required Ra and hardness levels.
Quality & Inspection
- Dimensional Accuracy: IT7–IT8 for critical diameters
- Straightness & Concentricity: ≤0.03–0.05 mm, depending on size
- Non-destructive Testing: Ultrasonic or Magnetic Particle Testing (per customer requirement)
- Hardness & Mechanical Testing: Verified per specification
Our rigorous quality protocols ensure that every pump shaft meets performance expectations and longevity requirements.
Design Boundaries & Non-Applicable Features
- Nuclear-grade applications
- Internal splines or internal gears
- Ultra-high-speed rotors
- Deep internal bores
To maintain manufacturability and reliability, the features above are outside our current scope.
Why Choose Liaoyuan Pump Shafts
- Proven forging and machining capability for medium to large industrial pump shafts
- Customizable within clearly defined ranges
- Transparent manufacturing and inspection processes
- Engineering support to ensure the shaft meets your application needs
Contact / Inquiry
Provide your specifications and our engineering team will assist in optimizing your pump shaft design.
