In heavy industrial equipment, the performance and reliability of
Transmission Components are critical to the overall safety, efficiency, and lifespan of machinery. Large forged shafts, gear rings,
Bearing Rings, and related support parts are subject to high torque, heavy loads, and complex force transmission. Selecting a dependable
Forging supplier is therefore a key consideration for project success.
This article outlines practical criteria for evaluating suppliers, focusing on production capabilities, material and
Heat Treatment expertise, machining precision, testing procedures, and industry experience.
1, Adequate Production Capabilities
A reliable supplier should have the forging capacity to meet the requirements of large industrial components:
- Open-die forging: Single-piece weight 100 kg–10 tons, lengths up to 8 meters, diameters 100–600 mm

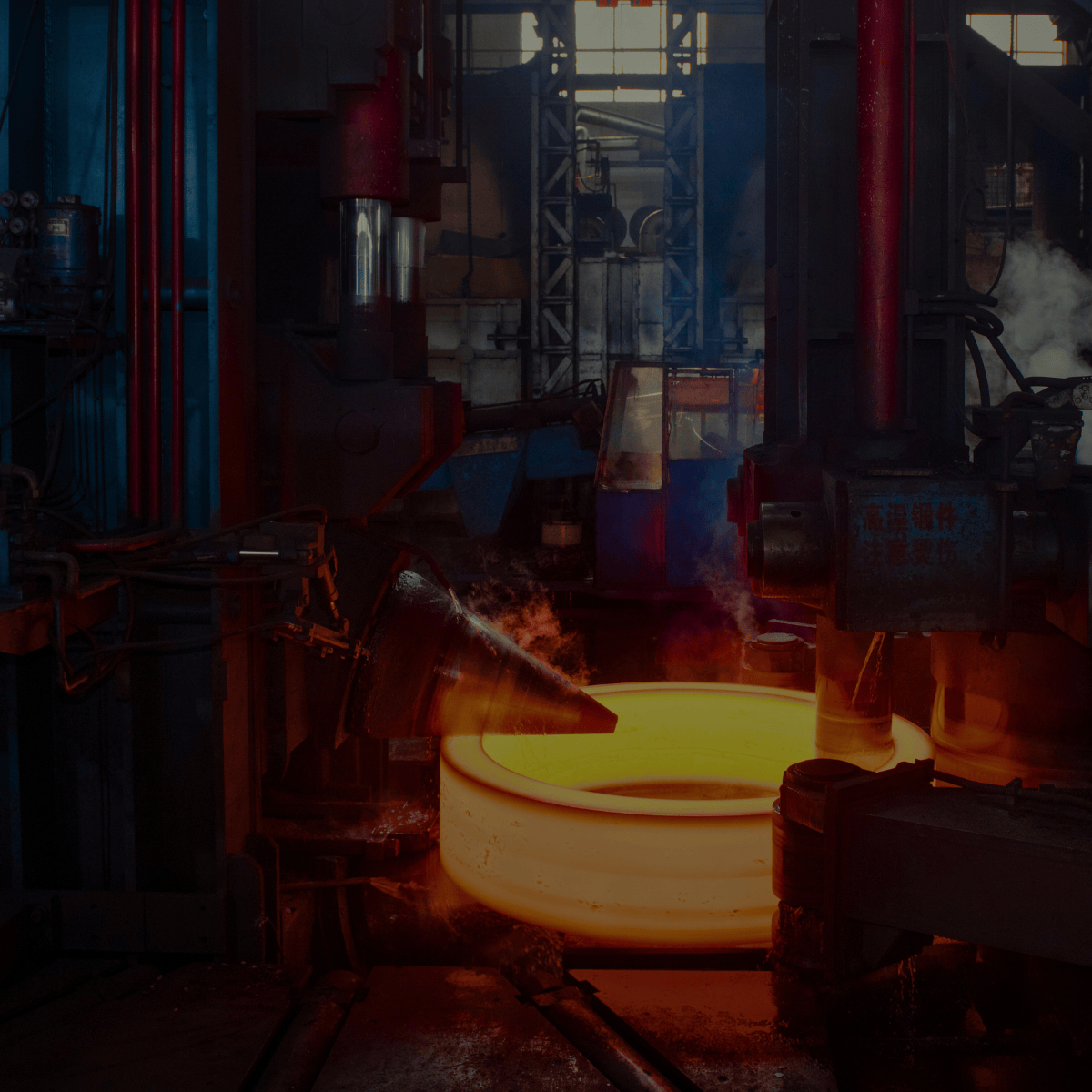

- Ring forging: Single-piece weight up to 9 tons, outer diameter 400 mm–5 m, height 0.8 m
- Material flexibility: Capability to work with alloy steels, high/mid/low carbon steels, or customer-specified grades
- Heat treatment: Full range including normalizing, quenching, tempering, annealing, and solution treatment; furnaces up to 6000 mm × 6000 mm
Such capabilities support projects across various industrial sectors, including wind power, mining, thermal power, and hydroelectric equipment.
2, Precision Machining and Quality Assurance
The final performance of large shafts and rings depends on strict control over machining and inspection:
-
Machining capabilities:
- Maximum turning diameter 3.5 m, length 4.5 m
- Accuracy up to 0.01 mm
-
Inspection equipment:
- Universal testing machines, impact testing machines, hardness testers (Rockwell/Leeb/Brinell)
- Ultrasonic testing (UT, phased array, immersion)
- Coordinate measuring machines, profilometers, metallographic microscopes, infrared thermometers
- Torque testing equipment up to 20,000 KNm
These measures ensure dimensional accuracy, surface quality, and absence of internal defects, in line with international standards (EN/ASTM) and operational requirements.
3, Material and Process Expertise
Material selection and heat treatment strategies are essential to component reliability and fatigue performance:
- Standard alloy steels, such as 42CrMo4, provide a balance of strength and toughness
- Heat treatment processes are tailored to specific shaft or ring designs
- Close monitoring of chemical composition and mechanical properties ensures performance under high torque, low-cycle fatigue, and challenging operating conditions
Combining material selection, heat treatment, and precision machining supports consistent long-term performance of critical transmission components.
4, Industry Experience and References
A reliable supplier demonstrates competence through practical experience with industrial projects:
- Suppliers with verified track records across multiple industries tend to have established procedures and quality management systems
- Experience with a range of transmission components—including shafts, rings, shrink discs, and support parts—can help ensure project requirements are met
The focus should be on relevant experience rather than highlighting individual clients or awards excessively.
5, Key Considerations
When evaluating a heavy-duty forging supplier, consider:
- Production capabilities: Ability to handle large, heavy components
- Precision machining and testing: Processes and equipment to ensure dimensional and internal quality
- Material and process expertise: Tailored heat treatment and steel grade management
- Demonstrated project experience: Verified, relevant industrial experience
Selecting a supplier meeting these criteria can reduce equipment failure risk, improve project efficiency, and support long-term operational reliability.
To proceed with inquiries or quotations for customized forged shafts or rings, prepare the essential information outlined in our next guide:
- Next article: What Information Is Required to Quote a Custom Forged Shaft or Ring →
