The Industrial Spindle Shaft Forging is a precision-critical, load-bearing rotating component designed for torque transmission and accurate rotational alignment in machine tools and heavy Industrial Equipment. It functions as a structural spindle shaft, supporting continuous rotational motion while maintaining high rigidity and long-term dimensional stability under demanding operating conditions.
Manufactured as a solid shaft through
Open Die Forging, this component belongs to high-performance
Forgings engineered for precision applications. Optimized axial grain flow enhances structural integrity, delivering excellent torsional strength, fatigue resistance, and stable geometry throughout extended service life. Compared with fabricated or cast alternatives, forged spindle shafts provide superior reliability for critical
Machined Components requiring tight tolerances.
Key Engineering Functions
- Transmits torque while maintaining high rotational accuracy
- Supports combined axial and radial loads during continuous operation
- Provides high structural rigidity for spindle and precision drive systems
Manufacturing & Quality Control
The spindle shaft is produced via controlled
open die forging to achieve uniform internal structure and refined grain orientation. This is followed by tailored
Heat Treatment and precision machining to meet strict straightness, concentricity, and surface integrity requirements.
Quality control is applied throughout forging, heat treatment, and machining stages. Inspections include material certification, ultrasonic testing, in-process dimensional verification, and final CMM inspection, ensuring consistent performance of critical machined components used in precision spindle assemblies.
Product Specifications
- Material: Alloy Steel (42CrMo4, 34CrNiMo6, or equivalent)
- Supply Condition: Forged blank or semi-machined
- Shaft Diameter: Typically 100 – 600 mm
- Length: ≤ 8,000 mm
- Heat Treatment: As specified

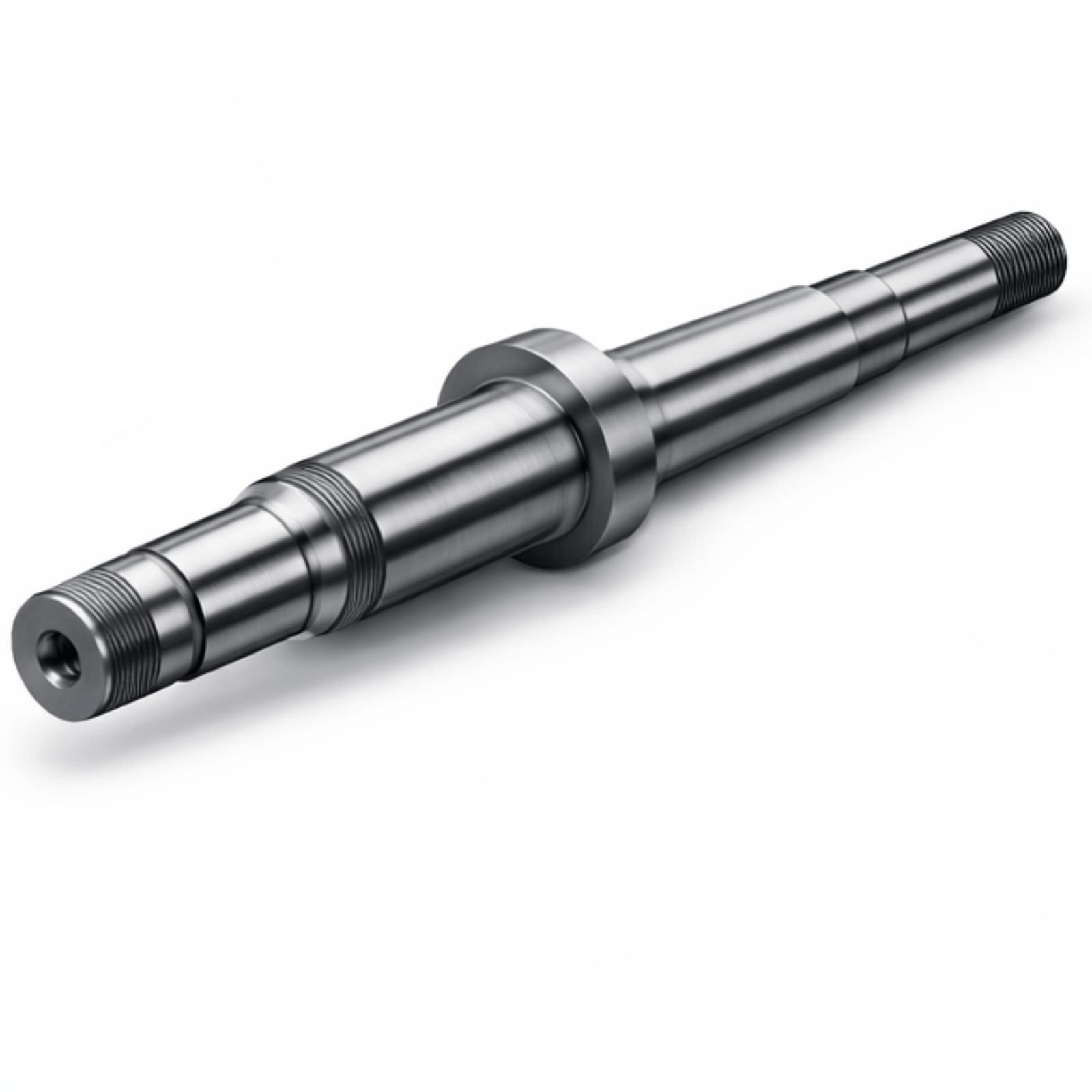

Images shown are technical reference renderings only and do not represent final design, dimensions, or specifications.
All components are custom-manufactured based on approved engineering drawings and service conditions
Typical Applications
- Machine tool spindle systems
- Industrial rotating equipment
- Heavy-duty drive and transmission assemblies
