In the manufacturing of heavy-duty forged components, Heat Treatment is a critical engineering step. For large shafts, forged rings, and structural parts, the selected heat treatment route directly affects mechanical strength, fatigue resistance, machinability, and dimensional stability.
In industries such as Wind Power, Mining Equipment, heavy gear systems, and Industrial Machinery, heat treatment is not simply a post-processing step. It is a key process that determines long-term reliability.
Below are four heat treatment processes commonly applied to large industrial Forgings.
1. Normalizing
Normalizing is often used as a stabilization step before machining or further heat treatment.
Purpose
Refine the grain structure and create a more uniform microstructure throughout the forging.
Typical Materials
- Low and medium carbon steels: C45, 20Cr, 42CrMo4
- Alloy steels: 20CrNiMo, 35CrMo, 42CrMo4
Typical Process Parameters
- Heating temperature: 840–880°C (depending on steel grade)
- Cooling method: air cooling outside the furnace
Process Description
The forging is heated above the austenitizing temperature and held long enough for full transformation. It is then cooled in air under controlled conditions.
Engineering Benefits
- Refines grain structure
- Improves toughness and ductility
- Reduces microstructural segregation from forging
- Prepares the material for machining or further heat treatment
Technical Challenges for Large Forgings
For thick-section shafts and large rings, temperature uniformity inside the furnace is critical. A furnace deviation greater than ±10°C may lead to uneven grain sizes. Large components are therefore typically heated in stages to reduce thermal gradients.
2. Quenching and Tempering
Quenching and tempering is widely used for components that operate under high loads, such as large shafts and forged rings.
Purpose
Achieve high strength while maintaining sufficient toughness.
Typical Materials
- Alloy steels: 42CrMo4, 34CrNiMo6, 35CrMo
Typical Process Parameters
- Quenching temperature: 830–860°C
- Cooling medium: oil or water depending on material and section thickness
- Tempering temperature: 550–650°C
Process Description
After austenitizing, the component is rapidly cooled to form a martensitic structure. The material is then reheated during tempering to reduce brittleness and optimize the balance of mechanical properties.
Engineering Benefits
- High tensile strength
- Excellent fatigue resistance
- Improved impact toughness
- Better dimensional stability after heat treatment
Technical Challenges
Large-diameter shafts and thick-wall rings are sensitive to thermal stress during rapid cooling. Improper quenching may result in cracking, distortion, or excessive residual stress.
3. Spheroidizing Annealing
For components that require extensive machining, such as precision rings or complex structural parts, spheroidizing annealing is an important preparatory heat treatment.
Purpose
Soften the material and transform carbides into a spherical structure to improve machinability.
Typical Materials
- High carbon steels: C60, C70, 100CrMnMoSi8-4-6
- Alloy steels: 42CrMo4, 34CrNiMo6
- Structural steels requiring high machinability
Typical Process Parameters
- Heating temperature: 680–720°C
- Holding time: 8–12 hours
- Thick components may require up to 24 hours
- Cooling method: slow cooling inside the furnace
Process Description
The steel is heated below the critical transformation temperature and held for an extended period, allowing carbides to transform into a spheroidized structure.
Engineering Benefits
- Lower hardness
- Reduced cutting resistance
- Longer tool life
- Improved machining surface quality
Technical Challenges
The long holding time requires stable furnace temperature control. For large rings, uneven heating may lead to inconsistent hardness distribution, which can affect machining accuracy.
4. Surface Hardening
Surface hardening is commonly applied to shafts and rings where working surfaces experience friction or contact stress.
Purpose
Increase surface hardness while maintaining a tough core structure.
Typical Materials
- Medium carbon steels: 42CrMo4, 40Cr
- Alloy steels: 35CrMo, 20CrNiMo
Typical Process Parameters
- Surface heating temperature: 840–880°C
- Induction heating may reach 900°C briefly
- Cooling medium: water or oil quenching
- Hardened layer depth: 2–6 mm
Common Methods
- Induction hardening
- Carburizing
- Nitriding
Engineering Benefits
- Improved wear resistance
- Higher contact fatigue strength
- Strong surface with a tough core
Technical Challenges
The depth of the hardened layer must be carefully controlled. Too deep may increase cracking risk, while too shallow may reduce wear resistance. For large rings, induction coil design and heating uniformity are particularly important.

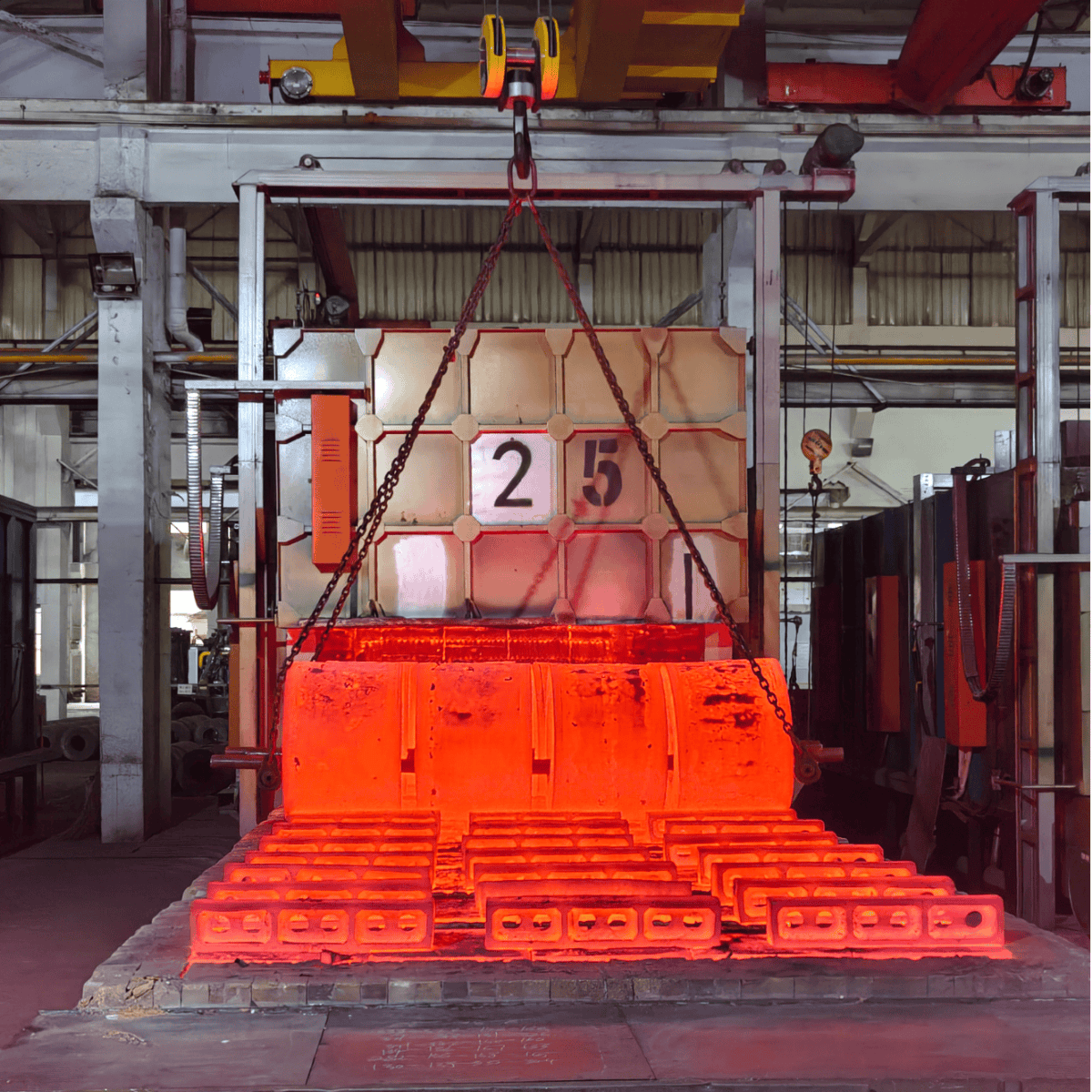

Heat-treated Products Manufactured by Jiangyin Liaoyuan
Heat Treatment: A Critical Engineering Process
In heavy industrial forging, heat treatment is far more than a simple heating and cooling procedure. It is a key process that determines mechanical performance, fatigue life, and machining feasibility.
For large shafts and ring forgings, the main engineering challenges include:
- Temperature uniformity in thick sections
- Controlling cooling rates to prevent cracking
- Maintaining dimensional stability during phase transformation
- Balancing strength and machinability
In large-diameter or thick-wall components, even small temperature deviations can create internal stress gradients that affect final dimensional accuracy and performance.
Industrial heat treatment capability therefore depends not only on furnace size, but also on process control expertise and experience with large forgings.
In our next article, we will discuss how deformation can be controlled during the heat treatment of large Bearing Rings and introduce our Anti-Deformation Fixture system, developed to improve dimensional stability during heat treatment.
