The Forged Industrial Main Drive Hub is a heavy-duty torque-transmitting component designed for main drive systems in Industrial Equipment operating under continuous high load and cyclic torque conditions. Installed at the primary drive interface, it connects shafts, couplings, or gearbox elements, ensuring stable and reliable power transmission in demanding industrial environments.
Manufactured as a solid Alloy Steel forged hub body with a machined bore, rather than a cast or fabricated structure, this component offers superior internal soundness, fatigue resistance, and long-term dimensional stability. It is engineered for high-torque applications where structural integrity and service life are critical.
Unlike
Bearing Rings or Gear Ring blanks, this product functions as a
structural drive hub, combining torque transmission with axial load capacity, and is positioned as a core element within heavy-duty
hub components for large rotating machinery.
Key Functions in Industrial Drive Systems
- Transmits high torque between motors, gearboxes, and transmission shafts
- Maintains precise concentricity and alignment under vibration and cyclic loading
- Supports long-term continuous operation in heavy industrial processing lines
The hub forging is produced via
Ring Rolling, ensuring dense internal structure and uniform grain flow. The forging typically undergoes controlled
Heat Treatment followed by rough machining, and final quenching and tempering, to achieve dimensional stability and minimized distortion in heavy-duty hub components.
Quality assurance is embedded throughout the forging, heat treatment, and machining processes. Inspections include material verification, in-process dimensional checks, heat treatment control, ultrasonic testing, and final CMM inspection. These procedures ensure the reliability of forged hub
Machined Components used in critical drive systems.
This full-process quality control guarantees internal soundness, consistent mechanical performance, and suitability for demanding industrial applications.
Product Specifications
- Material: Alloy steel (e.g. 42CrMo4, 34CrNiMo6, or equivalent)
- Supply Condition: Forged blank or semi-machined
- Outer Diameter: Typically up to 400 mm
- Net Weight Range: Typically 100 kg – 800kg
- Heat Treatment: As per application requirements
This product belongs to our medium-to-large Ring Rolled Forgings range and excludes small or light-duty hub components.
Industrial Applications
- Main drive systems in industrial processing equipment
- Pelletizing and extrusion machinery
- Heavy-duty mixers and crushers
- Gearbox-connected transmission assemblies
- Structural hub components in large rotating systems
Mechanical & Functional Characteristics
- High torsional strength and load-bearing capacity
- Excellent fatigue resistance under continuous drive cycles
- Stable geometry for accurate shaft and coupling alignment
- Designed for long-term structural use in industrial equipment

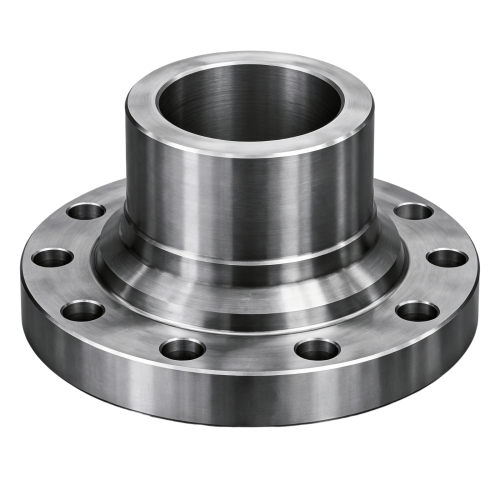

Images shown are technical reference renderings only and do not represent final design, dimensions, or specifications.
All components are custom-manufactured based on approved engineering drawings and service conditions.
