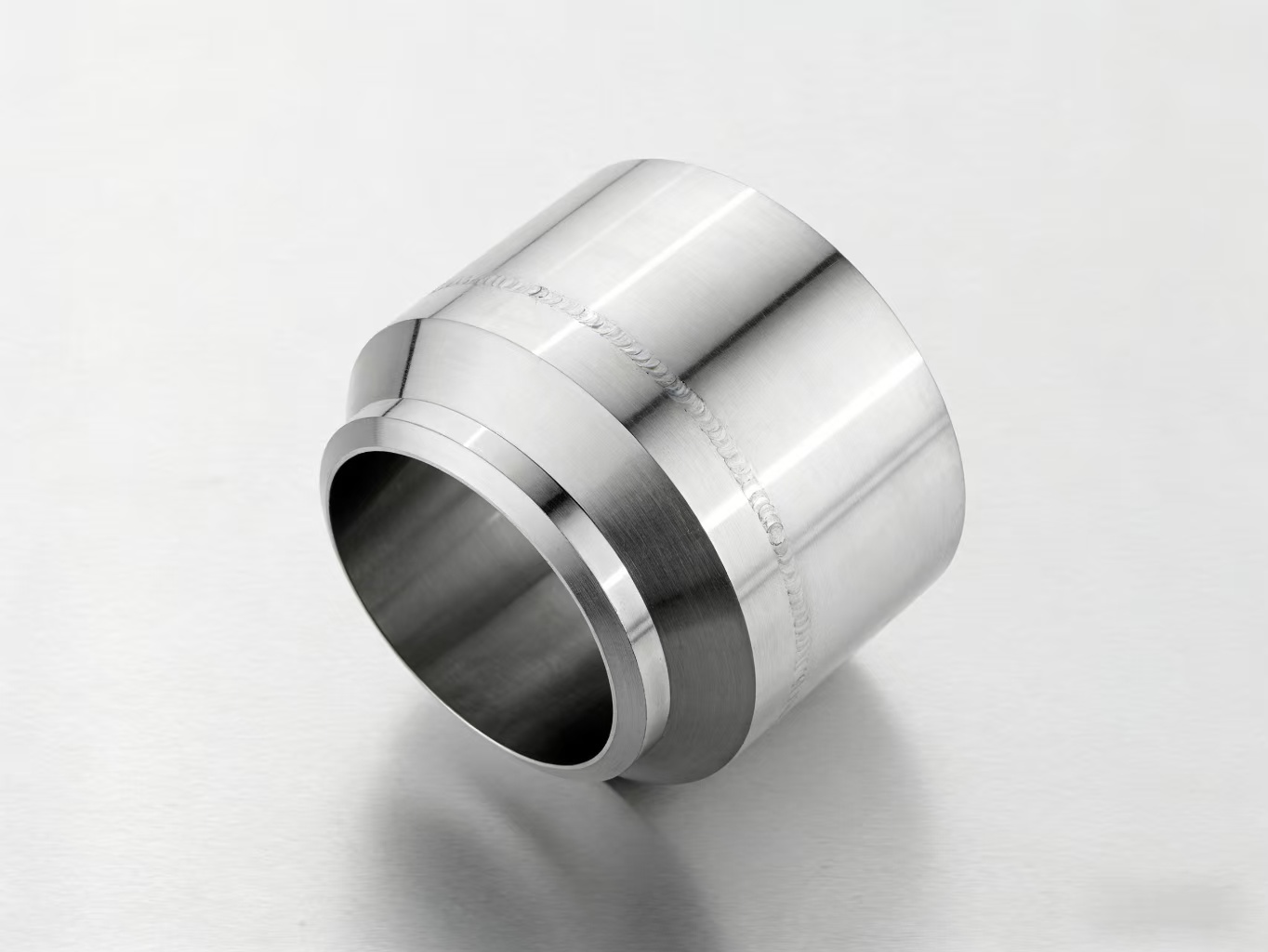

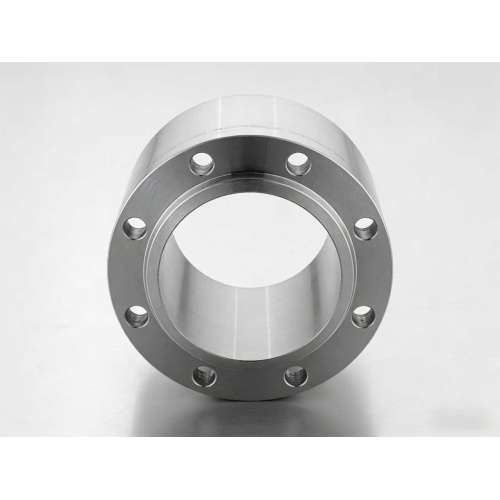

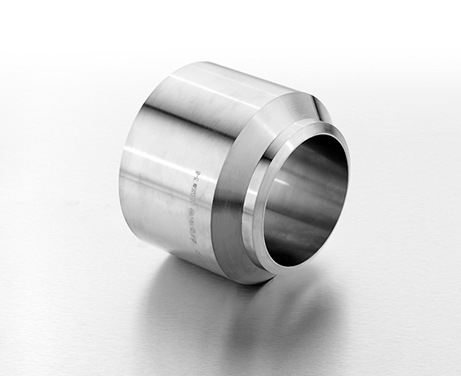

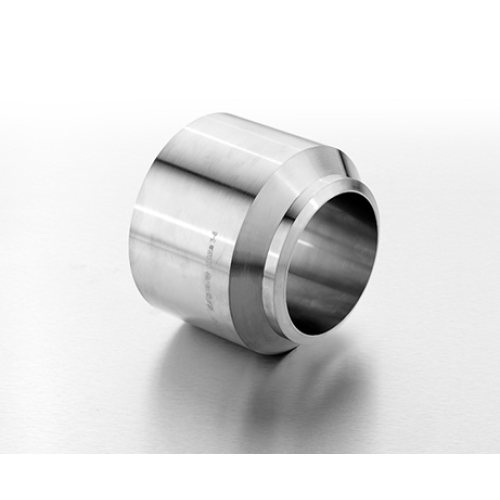

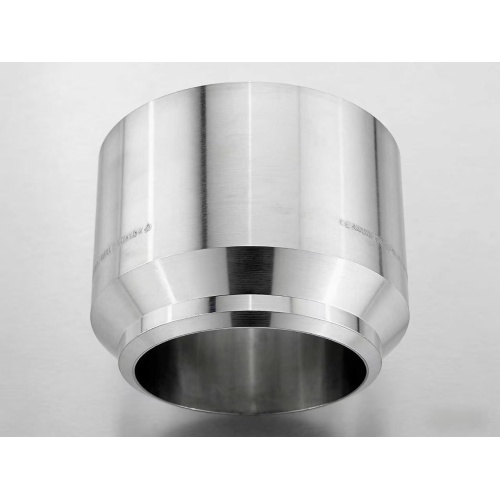

The pressure vessel nozzle is a critical connecting component for petrochemical pressure vessels, designed to facilitate medium transmission between equipment. Engineered with a combination of
Ring Rolling processes, followed by precision
CNC Machining and rigorous non-destructive testing, it boasts exceptional mechanical strength and superior sealing performance—ensuring leak-proof operation even under harsh petrochemical working conditions.
Our pressure vessel nozzles are crafted from high-quality structural steels, adhering to strict manufacturing standards to meet the demanding requirements of petrochemical applications. With precise dimensional accuracy and reliable performance, they serve as the vital link in pressure vessel systems, guaranteeing safe and efficient medium transfer in oil refining, natural gas processing, and chemical reaction equipment.
We implement a stringent end-to-end manufacturing and quality inspection process to ensure the integrity, performance, and safety of every pressure vessel nozzle:
1.Incoming Material Inspection
2.Blank Cutting
3.Ring Rolling
6.Heat Treatment Inspection
7.Mechanical & Chemical Testing (Tensile, compression, bending tests; Impact test; End quenching test)
8.Precision CNC Machining (Rough Turning → Semi-Finish Turning → Finish Turning)
9.Comprehensive Inspection:
Dimensional & Geometric Tolerance Check
Non-Destructive Testing (Ultrasonic Testing, Phased Array Ultrasonic Testing, KARL DEUTSCH Immersion Ultrasonic Testing, MT Magnetic Particle Testing)
Traceability Marking
10.Anti-Corrosion Treatment (Zinc Spraying, Painting)
11.Cleaning | Packing | Storage
Product Specifications
- Material: 20G, 16MnR
- Diameter: Φ50 - Φ800 mm
- Wall Thickness: 8 - 60 mm
- Length: 200 - 2000 mm
- Pressure Rating: 1.6 - 10 MPa
- Machining Precision: 0.01 mm
- Supply Standard: Compliant with international standards (DIN, ASTM, ASME, EN, GB)
- Anti-Corrosion Treatment: Zinc Spraying, Painting
Industry Applications
Our pressure vessel nozzles are optimized for high-reliability medium transmission in petrochemical systems requiring robust sealing and pressure resistance. Key application scenarios include:
- Oil Refining: Connecting components for distillation towers, reactors, and storage vessels in oil refining plants.
- Natural Gas Processing: Pressure vessel connections for natural gas purification, liquefaction, and transportation equipment.
- Chemical Reaction Equipment: Critical linking parts for chemical reactors, separators, and heat exchangers in chemical production lines.
Product Advantages
- Exceptional Strength & Sealing: Combined open die forging and ring rolling process ensures high structural integrity, while precision CNC machining guarantees tight sealing performance.
- Rigorous Quality Assurance: Full-process inspection with advanced testing equipment (e.g., OLYMPUS phased array ultrasonic detector, Wenzel CMM)ensures reliability.
- High Customization Flexibility: Tailored dimensions (diameter, wall thickness, length), materials, and pressure ratings to meet specific project requirements.
- International Standard Compliance: Manufactured in accordance with global standards (DIN, ASTM, ASME, EN, GB) for seamless integration into global petrochemical projects.
- Enhanced Durability: Professional anti-corrosion treatments (zinc spraying, painting) extend service life in corrosive petrochemical environments.
Our high-performance pressure vessel nozzles provide a reliable connection solution for critical petrochemical equipment. Backed by our strong forging, CNC machining, and quality control capabilities,
we deliver products that meet the strictest safety and performance standards. Whether for oil refining, natural gas processing, or chemical reaction systems, our pressure vessel nozzles are the trusted choice for your petrochemical projects.
