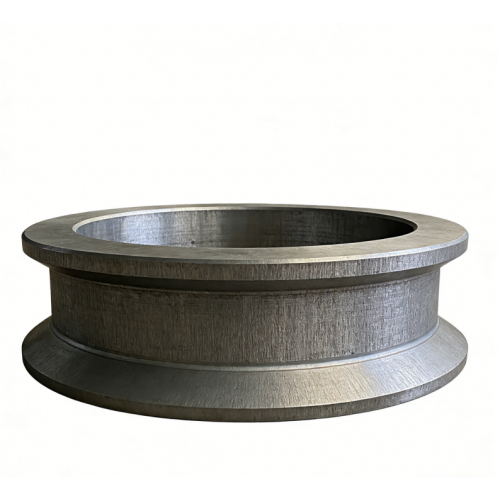

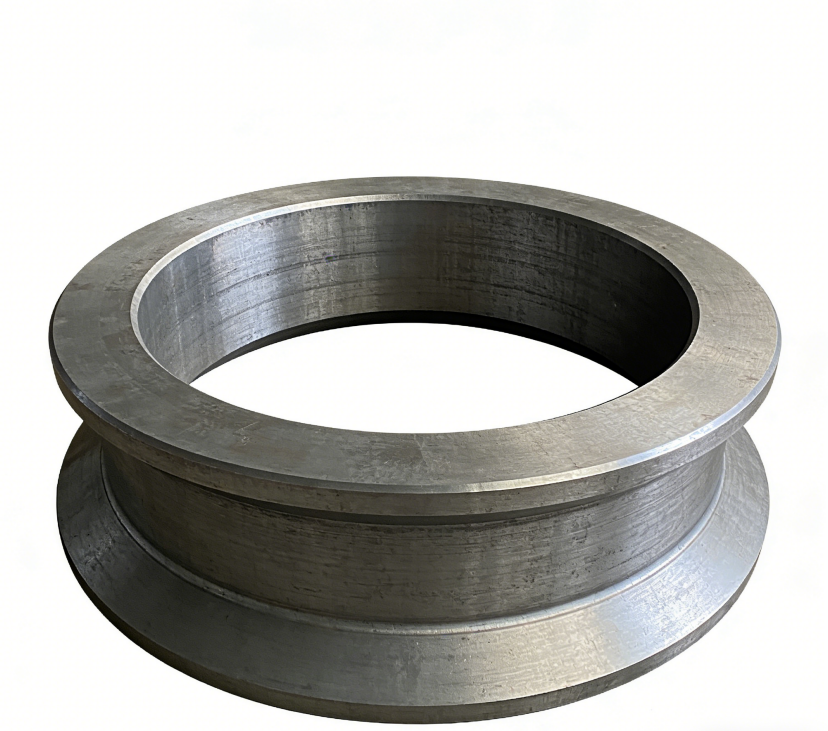

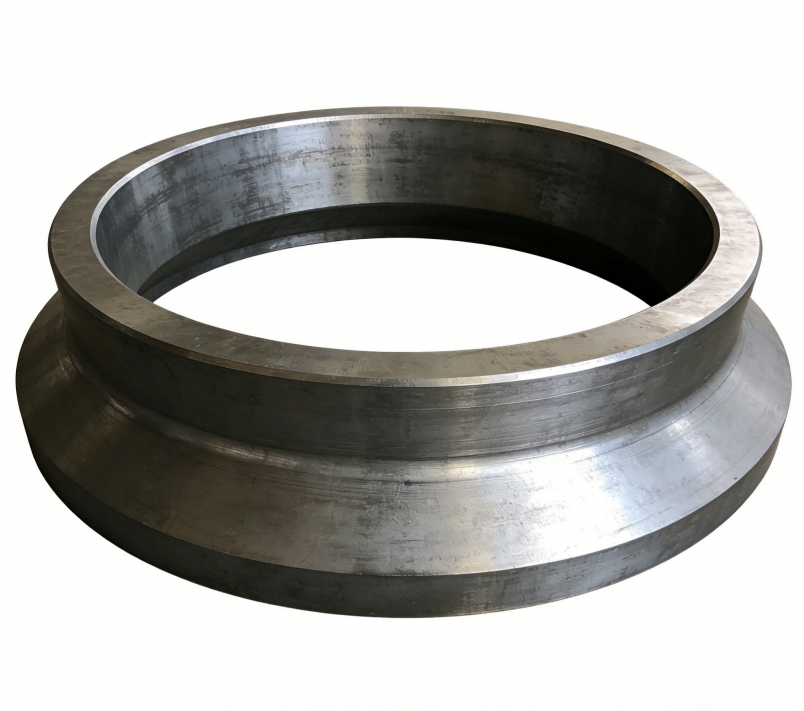

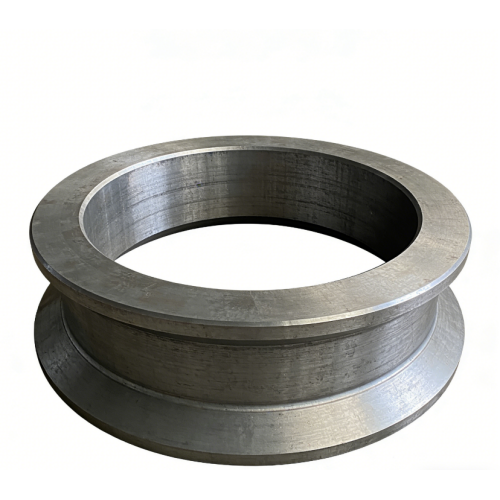

The large storage tank bottom support ring is a critical load-bearing component for pressure vessels and
Heavy-duty Equipment in the
Petrochemical Industry. Designed exclusively to bear the self-weight of equipment, it does not come into contact with pressurized media, thus avoiding the risk of stress-induced deformation caused by medium pressure.
Manufactured via the
Ring Rolling process, this product is made of high-quality 42CrMo alloy steel and undergoes
Heat Treatment as well as high-precision machining. The annealing process effectively eliminates
Forging residual stress, ensuring exceptional structural stability and long service life under static load conditions. It serves as a reliable load-bearing foundation for large storage tank bottom support systems, providing stable support for heavy petrochemical equipment.
We implement a rigorous full-cycle manufacturing and quality inspection process as follows:
1.Incoming Material Inspection
2.Blank Cutting
3.Ring Rolling
4.Post-Forging Inspection
5.Heat Treatment: Normalizing → Annealing (Eliminate Forging Residual Stress)
6.Heat Treatment Inspection
7.Mechanical Property Testing
8.Precision Machining: Rough Turning → Semi-Finish Turning → Finish Milling
9.Comprehensive Inspection:
Dimensional & Geometric Tolerance Check
Non-Destructive Testing (Ultrasonic Testing, MT Magnetic Particle Testing)
Traceability Marking
10.Anti-Corrosion Treatment
11.Cleaning | Packing | Storage
Product Specifications
- Material: 42CrMo Alloy Steel
- Outer Diameter: 0~5m
- Single Piece Weight: 0~9t
- Machining Precision: 0.01mm
- Supply Standard: Compliant with International Standards (DIN, ASTM, ASME, EN, GB)
- Anti-Corrosion Treatment: Zinc Spraying, Painting
Industry Applications
Our large storage tank bottom support ring is specifically optimized for heavy-duty static load scenarios in the petrochemical industry, with core applications including:
- Large Petrochemical Storage Tanks: Primary bottom support components for crude oil, chemical raw material, and finished product storage tanks
- Heavy Pressure Vessel Auxiliary Structures: Load-bearing bases for stationary pressure vessels that do not directly contact pressurized media
- Industrial Heavy Equipment Foundations: Stable support components for large-scale mixing equipment, separation devices, and reaction vessel auxiliary systems
Product Advantages
- Normalizing + annealing heat treatment completely eliminates forging residual stress, preventing deformation and cracking under long-term static load.
- Full-process inspection combined with advanced equipment (e.g., ultrasonic detector, coordinate measuring machine) ensures zero internal defects and dimensional compliance.
- Flexible customization of outer diameter (≤ 5m), width, thickness, and weight (≤ 9t) to match different tank specifications and load requirements.
- Professional zinc spraying and painting treatments extend service life in harsh petrochemical field environments.
Our high-performance large storage tank bottom support ring provides a stable and reliable load-bearing solution for heavy petrochemical equipment. Backed by advanced ring rolling, precision machining, and strict quality control capabilities, our products fully comply with international standards and are suitable for various on-site application requirements. Whether for large storage tanks or heavy pressure vessel foundations, our support ring is the trusted choice for your petrochemical projects.
